In polymer processing and plastics extrusion, Parallel and Conical Twin Screw Barrels are the two primary designs used to plasticize, mix, and shape raw polymer materials (especially PVC powder or granules) into finished products like pipes, profiles, sheets, and pellets.
While both utilize two intermeshing screws rotating inside a dual-bore barrel, their structural geometry, pressure capabilities, and ideal application areas differ significantly.

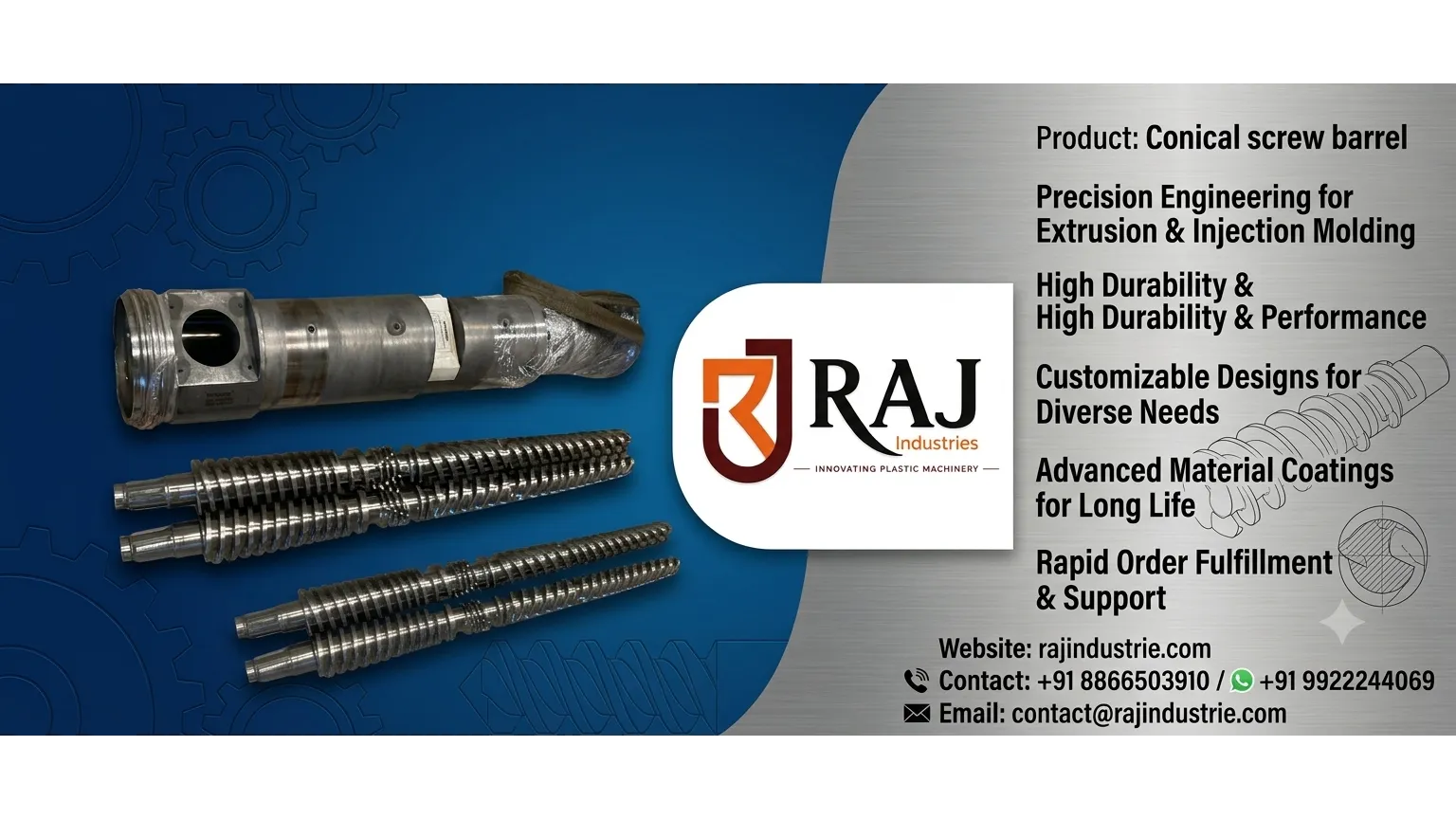

Technical Comparison: Parallel vs. Conical Feature / Metric Parallel Twin Screw Barrel Conical Twin Screw Barrel Screw Geometry Uniform diameter from feed to discharge end. Tapered design: larger diameter at feed, smaller at discharge. Center Distance Constant distance along the entire lengthening-parallel; center distance narrows toward the discharge end. Feeding & Intake Standard volumetric feed capacity relative to screw diameter. High intake capacity at the large feed zone; compresses material rapidly. Torque Capacity Higher gear space at rear allows larger thrust bearings and high torque. Limited gearbox space at the narrow end restricts total torque capacity. Plasticizing Action Shear heating and melt homogenizing are uniform along the barrel length. High compression ratio near the feed zone allows rapid melting with minimal thermal strain. Processing Speed Higher output rates and higher RPM capability. Moderate RPM capability; better suited for shear-sensitive formulations.1. Conical Twin Screw Barrel Design Profile: The screws feature a conical taper. The large diameter at the feeding section provides a large surface area for heat transfer and raw powder intake, while the small diameter at the discharge end reduces linear tip speed and build-up of excessive shear heat. Key Strengths: Excellent for heat-sensitive materials like unplasticized PVC (uPVC / Rigid PVC).Generates high melt pressure efficiently at the output tip. Lower equipment capital cost compared to large parallel units. Common Applications: PVC pipe manufacturing, window profiles, ceiling panels, trucking, and wood-plastic composites (WPC).2. Parallel Twin Screw Barrel Design Profile: Both screws retain a constant diameter across their entire length (e.g., L/D ratios usually ranging from 22:1 to 36:1 or higher). They can be co-rotating or counter-rotating, often modular with replaceable screw elements and barrel liners. Key Strengths: High Output & Scale: Suitable for high-throughput manufacturing lines. Robust Mechanical Design: The constant center distance permits larger, high-torque thrust bearings in the gearbox. Superior Mixing: Excellent dispersion capability for master batching, compounding, and heavy filler loads (e.g., high calcium carbonate loading).Common Applications: High-speed PVC pipe extrusion, compounding, pelletizing, masterbatch production, and processing engineering polymers (PET, PE, PP, ABS).Materials & Surface Treatments To handle corrosive and abrasive additives (such as $TiO_2$, flame retardants, or calcium carbonate), both screw types are typically constructed using high-grade alloy steels and protective coatings: Base Steels: 38CrMoAlA (SACM645), Nitralloy 135M, or tool steels like SKD61.Nitriding Treatment: Gas nitriding yields a surface hardness of 900–1000 HV with depth up to 0.5–0.8 mm.Bimetallic Alloy Coating: Nickel-based or Cobalt-based self-fluxing alloy tungsten carbide lining applied via centrifugal casting or PTA welding for extreme wear resistance.
While both utilize two intermeshing screws rotating inside a dual-bore barrel, their structural geometry, pressure capabilities, and ideal application areas differ significantly.
Technical Comparison: Parallel vs. Conical Feature / Metric Parallel Twin Screw Barrel Conical Twin Screw Barrel Screw Geometry Uniform diameter from feed to discharge end. Tapered design: larger diameter at feed, smaller at discharge. Center Distance Constant distance along the entire lengthening-parallel; center distance narrows toward the discharge end. Feeding & Intake Standard volumetric feed capacity relative to screw diameter. High intake capacity at the large feed zone; compresses material rapidly. Torque Capacity Higher gear space at rear allows larger thrust bearings and high torque. Limited gearbox space at the narrow end restricts total torque capacity. Plasticizing Action Shear heating and melt homogenizing are uniform along the barrel length. High compression ratio near the feed zone allows rapid melting with minimal thermal strain. Processing Speed Higher output rates and higher RPM capability. Moderate RPM capability; better suited for shear-sensitive formulations.1. Conical Twin Screw Barrel Design Profile: The screws feature a conical taper. The large diameter at the feeding section provides a large surface area for heat transfer and raw powder intake, while the small diameter at the discharge end reduces linear tip speed and build-up of excessive shear heat. Key Strengths: Excellent for heat-sensitive materials like unplasticized PVC (uPVC / Rigid PVC).Generates high melt pressure efficiently at the output tip. Lower equipment capital cost compared to large parallel units. Common Applications: PVC pipe manufacturing, window profiles, ceiling panels, trucking, and wood-plastic composites (WPC).2. Parallel Twin Screw Barrel Design Profile: Both screws retain a constant diameter across their entire length (e.g., L/D ratios usually ranging from 22:1 to 36:1 or higher). They can be co-rotating or counter-rotating, often modular with replaceable screw elements and barrel liners. Key Strengths: High Output & Scale: Suitable for high-throughput manufacturing lines. Robust Mechanical Design: The constant center distance permits larger, high-torque thrust bearings in the gearbox. Superior Mixing: Excellent dispersion capability for master batching, compounding, and heavy filler loads (e.g., high calcium carbonate loading).Common Applications: High-speed PVC pipe extrusion, compounding, pelletizing, masterbatch production, and processing engineering polymers (PET, PE, PP, ABS).Materials & Surface Treatments To handle corrosive and abrasive additives (such as $TiO_2$, flame retardants, or calcium carbonate), both screw types are typically constructed using high-grade alloy steels and protective coatings: Base Steels: 38CrMoAlA (SACM645), Nitralloy 135M, or tool steels like SKD61.Nitriding Treatment: Gas nitriding yields a surface hardness of 900–1000 HV with depth up to 0.5–0.8 mm.Bimetallic Alloy Coating: Nickel-based or Cobalt-based self-fluxing alloy tungsten carbide lining applied via centrifugal casting or PTA welding for extreme wear resistance.
