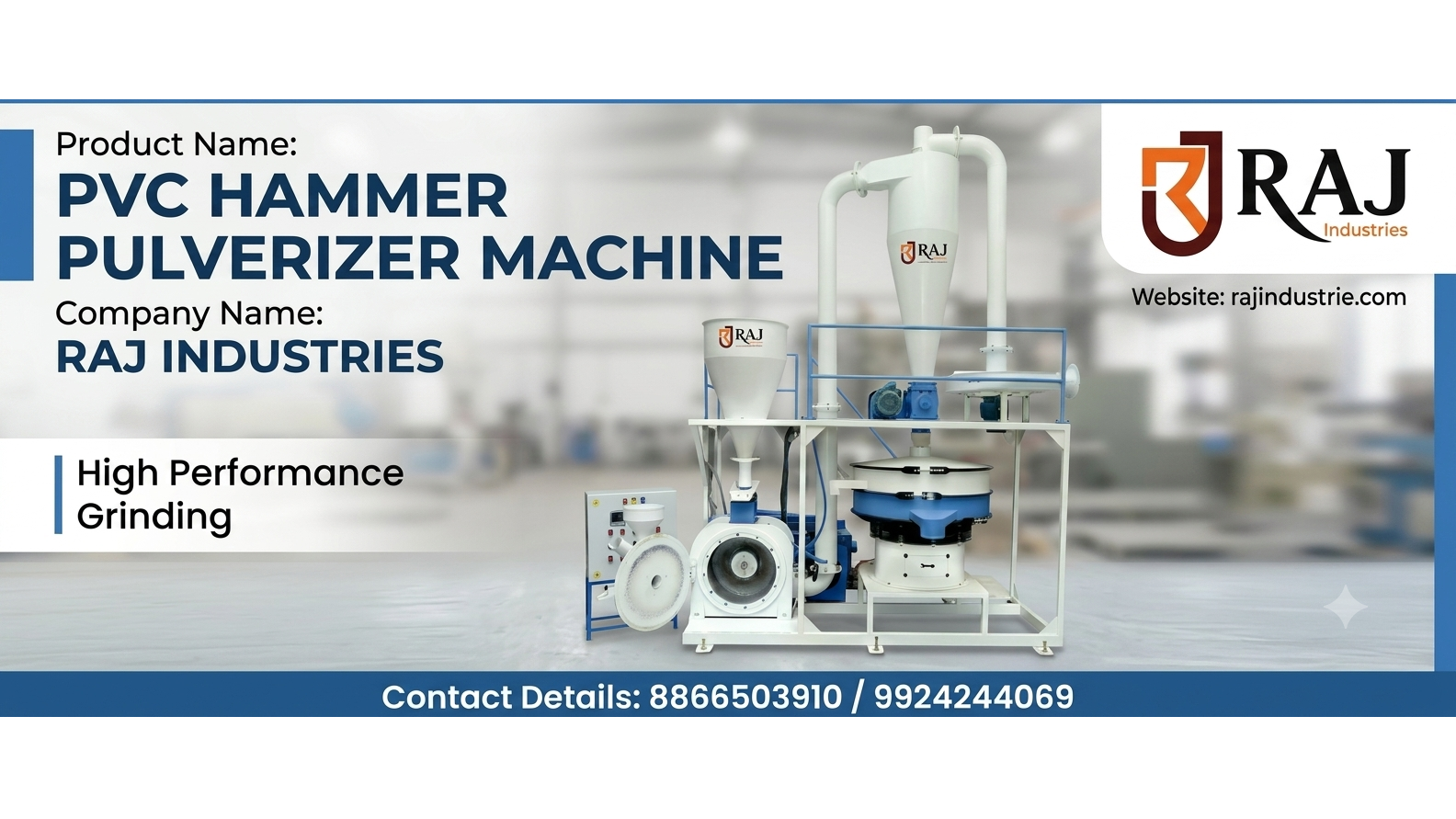

*PVC PLASTIC HAMMER PULVERIZER MACHINE - COMPLETE DETAILS*
*1. MACHINE OVERVIEW:*
This is a high-speed hammer type pulverizer used for grinding rigid PVC scrap into fine powder. The powder can be re-used 30-40% with virgin material in pipe and profile extrusion.
*2. MAIN COMPONENTS:*
A) Main Grinding Unit:
- Heavy duty MS fabricated body with water cooling jacket
- High-speed rotor with 12 Nos. hammers
- Fixed tooth liner plates
- Front door opening for easy blade replacement
B) Cyclone Separator:
- Diameter: 600mm to 800mm
- Separates powder from air
- With rotary air-lock valve at bottom
C) Dust Collector & Blower Unit:
- Dust filter bags (8 to 12 nos.)
- High pressure blower for suction
- Auto cleaning system for bags
D) Vibrating Screen:
- Size: 800mm to 1200mm diameter
- Separates coarse and fine powder
- 2 Layer screen (20 to 80 mesh)
E) Control Panel:
- Star-Delta starter, Ammeter, Voltmeter
*3. TECHNICAL SPECIFICATION:*
Parameter | Details
Model | MF-600 / PF-600
Input Material | Rigid PVC Pipe, Profile, Sheet Scrap
Input Size | 6mm to 10mm (pre-crushed)
Output Powder Size | 20 Mesh to 80 Mesh adjustable
Production Capacity | 20 Mesh: 500-600 Kg/Hr
40 Mesh: 300-400 Kg/Hr
80 Mesh: 150-200 Kg/Hr
Main Motor | 40 HP / 50 HP / 60 HP (1440 RPM)
Blower Motor | 3 HP / 5 HP
Vibrator Motor | 1 HP / 1.5 HP
Hammer Blades | 12 Nos, D2 Steel, Hardened
Fixed Blades | 4 Nos, D2 Steel
Rotor Speed | 2800-2900 RPM
Cooling System | Water cooling jacket on grinding chamber
Pipe Line | Full SS 304 Pipe line
Screen Size | 40 Mesh (standard), extra screens available
Power Supply | 440V, 3 Phase, 50Hz
*4. WORKING PRINCIPLE:*
Raw PVC chips -> Fed into hopper -> Go into grinding chamber -> High-speed hammers hit the material against tooth plates -> Material becomes powder -> Blower sucks powder through pipe -> Cyclone separates powder and air -> Powder goes to vibrating screen -> Fine powder collected in bag.
*5. FEATURES:*
- Low power consumption
- White and cool powder, no burning
- No dust in factory due to dust collector
- Easy blade replacement in 15 minutes
- Low noise and vibration
*1. MACHINE OVERVIEW:*
This is a high-speed hammer type pulverizer used for grinding rigid PVC scrap into fine powder. The powder can be re-used 30-40% with virgin material in pipe and profile extrusion.
*2. MAIN COMPONENTS:*
A) Main Grinding Unit:
- Heavy duty MS fabricated body with water cooling jacket
- High-speed rotor with 12 Nos. hammers
- Fixed tooth liner plates
- Front door opening for easy blade replacement
B) Cyclone Separator:
- Diameter: 600mm to 800mm
- Separates powder from air
- With rotary air-lock valve at bottom
C) Dust Collector & Blower Unit:
- Dust filter bags (8 to 12 nos.)
- High pressure blower for suction
- Auto cleaning system for bags
D) Vibrating Screen:
- Size: 800mm to 1200mm diameter
- Separates coarse and fine powder
- 2 Layer screen (20 to 80 mesh)
E) Control Panel:
- Star-Delta starter, Ammeter, Voltmeter
*3. TECHNICAL SPECIFICATION:*
Parameter | Details
Model | MF-600 / PF-600
Input Material | Rigid PVC Pipe, Profile, Sheet Scrap
Input Size | 6mm to 10mm (pre-crushed)
Output Powder Size | 20 Mesh to 80 Mesh adjustable
Production Capacity | 20 Mesh: 500-600 Kg/Hr
40 Mesh: 300-400 Kg/Hr
80 Mesh: 150-200 Kg/Hr
Main Motor | 40 HP / 50 HP / 60 HP (1440 RPM)
Blower Motor | 3 HP / 5 HP
Vibrator Motor | 1 HP / 1.5 HP
Hammer Blades | 12 Nos, D2 Steel, Hardened
Fixed Blades | 4 Nos, D2 Steel
Rotor Speed | 2800-2900 RPM
Cooling System | Water cooling jacket on grinding chamber
Pipe Line | Full SS 304 Pipe line
Screen Size | 40 Mesh (standard), extra screens available
Power Supply | 440V, 3 Phase, 50Hz
*4. WORKING PRINCIPLE:*
Raw PVC chips -> Fed into hopper -> Go into grinding chamber -> High-speed hammers hit the material against tooth plates -> Material becomes powder -> Blower sucks powder through pipe -> Cyclone separates powder and air -> Powder goes to vibrating screen -> Fine powder collected in bag.
*5. FEATURES:*
- Low power consumption
- White and cool powder, no burning
- No dust in factory due to dust collector
- Easy blade replacement in 15 minutes
- Low noise and vibration
