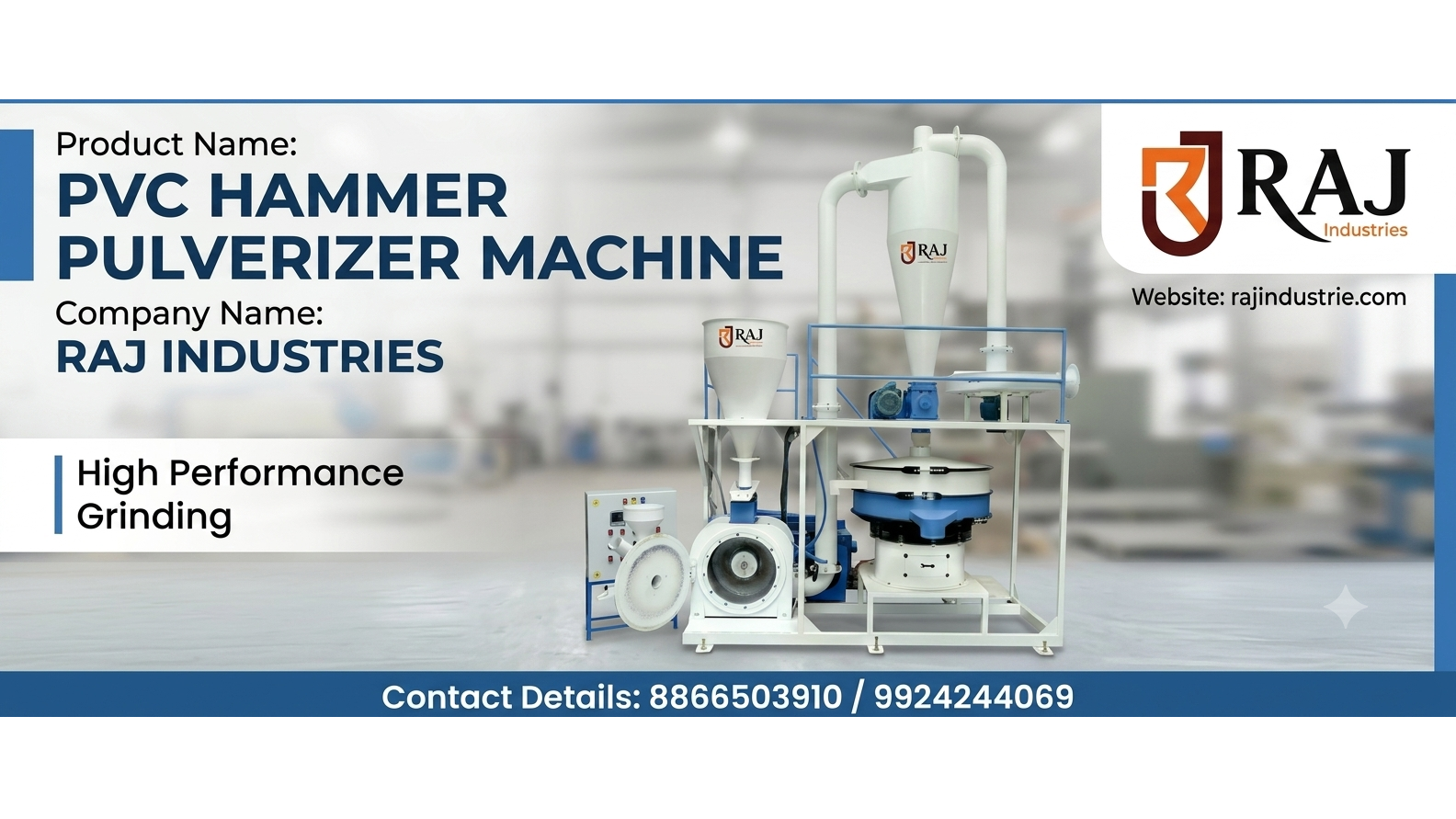

*PVC PLASTIC HAMMER PULVERIZER MACHINE - COMPLETE DETAILS* *1. MACHINE OVERVIEW:* This is a high-speed hammer type pulverizer used for grinding rigid PVC scrap into fine powder. The powder can be re-used 30-40% with virgin material in pipe and profile extrusion. *2. MAIN COMPONENTS:* A) Main Grinding Unit: - Heavy duty MS fabricated body with water cooling jacket - High-speed rotor with 12 Nos. hammers - Fixed tooth liner plates - Front door opening for easy blade replacement B) Cyclone Separator: - Diameter: 600mm to 800mm - Separates powder from air - With rotary air-lock valve at bottom C) Dust Collector & Blower Unit: - Dust filter bags (8 to 12 nos.) - High pressure blower for suction - Auto cleaning system for bags D) Vibrating Screen: - Size: 800mm to 1200mm diameter - Separates coarse and fine powder - 2 Layer screen (20 to 80 mesh) E) Control Panel: - Star-Delta starter, Ammeter, Voltmeter *3. TECHNICAL SPECIFICATION:* Parameter | Details Model | MF-600 / PF-600 Input Material | Rigid PVC Pipe, Profile, Sheet Scrap Input Size | 6mm to 10mm (pre-crushed) Output Powder Size | 20 Mesh to 80 Mesh adjustable Production Capacity | 20 Mesh: 500-600 Kg/Hr 40 Mesh: 300-400 Kg/Hr 80 Mesh: 150-200 Kg/Hr Main Motor | 40 HP / 50 HP / 60 HP (1440 RPM) Blower Motor | 3 HP / 5 HP Vibrator Motor | 1 HP / 1.5 HP Hammer Blades | 12 Nos, D2 Steel, Hardened Fixed Blades | 4 Nos, D2 Steel Rotor Speed | 2800-2900 RPM Cooling System | Water cooling jacket on grinding chamber Pipe Line | Full SS 304 Pipe line Screen Size | 40 Mesh (standard), extra screens available Power Supply | 440V, 3 Phase, 50Hz *4. WORKING PRINCIPLE:* Raw PVC chips -> Fed into hopper -> Go into grinding chamber -> High-speed hammers hit the material against tooth plates -> Material becomes powder -> Blower sucks powder through pipe -> Cyclone separates powder and air -> Powder goes to vibrating screen -> Fine powder collected in bag. *5. FEATURES:* - Low power consumption - White and cool powder, no burning - No dust in factory due to dust collector - Easy blade replacement in 15 minutes - Low noise and vibration
